Semi Automatic Punching Press Machine Alu Foil Bowls Cups Plates Macking

Product Categories
Anhui Aoxuan Heavy Industry Machine Co., Ltd.
Contact Now

Semi Automatic Punching Press Machine Alu Foil Bowls Cups Plates Macking

  • 1
  • 2

Brand Name : Aoxuanzg

Model Number : JF21-45T

Certification : CE,ISO

Place of Origin : China

MOQ : 1 set

Price : $17500-23500/SET

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 500 sets per year

Delivery Time : 50-60 days

Packaging Details : Standard export packing

Raw material : Aluminum foil bowls cups plates

Power : 7.5kw

Warranty : 2 years

Power Source : Pneumatic

Voltage : 380v/220v

CNC or Not : CNC

Contact Now

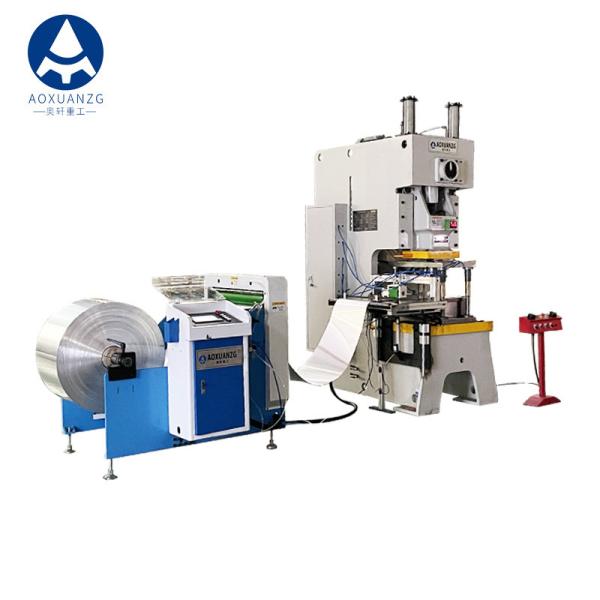

JF21-45T Semi Automatic Punching Press Aluminum Foil Bowls Cups Plates Macking Machine For Sale

Components:

1. Air compressor.
2. Automatic servo feeder.
3. 45/63/80T Aoxuanzg brand "C" frame pneumatic press.
5. Moulds.
6. Auto stacker with1-4 lanes.
7. Full /Semi automatic scrap aspirator & press machine.

Semi Automatic Punching Press Machine Alu Foil Bowls Cups Plates Macking

Technical parameter:

ITEM
Unit
45T
63T
Nominal Pressure
kn
450
630
Slide Stroke Per Minutes
s.p.m
40-70
40-70
Maximum Mold Set Height
mm
450
450
Slide Adjustment
mm
60
80
Slide Bottom Size
mm
340*410
340*410
Bolster Size
mm
800*900
1100*1000
Throat Depth
mm
400
500
Total Power
kw
5.5
7.5
Weight
kg
5500
8500
Dimension
mm
1700*1200*3100
2200*1450*3400

1. Feeder with lubricating oil system:

Max. Diameter of roll :￠800mm

Max. Roll width :700mm

Feed speed :20-50M/min

Feeding length: 30-999 mm

Feeding tolerance :+ / -0.3 mm

Semi Automatic Punching Press Machine Alu Foil Bowls Cups Plates Macking

2. 45T high precision pneumatic press:

Valve body working plate hole size :300*300mm

Travel time: 60-100 times/min

Stroke height :240 mm

Thickness of working plate :100mm

Max. Mounting height :390mm

Slider bottom size, handle hole size :220*400mm

Distance from slice center to fuselage :340mm

Mold height adjustment :80mm

Hole size of die shank :60mm

Table size :1000* 800mm

Semi Automatic Punching Press Machine Alu Foil Bowls Cups Plates Macking

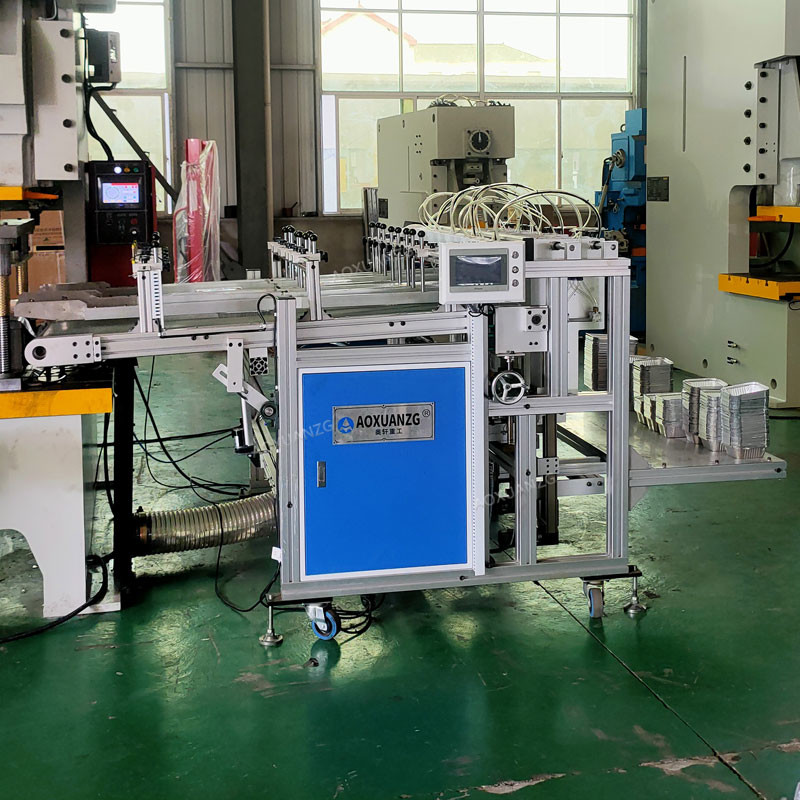

3. Two railway stackers

Conveyor width :550 mm

Height of collecting belt :1100-1300mm

Minimum container size :120 × 100mm(size adjustable)

Maximum container size :360 x250(size adjustable)

Maximum working speed :65 PC /min

Semi Automatic Punching Press Machine Alu Foil Bowls Cups Plates Macking

4. Waste collector

Speed: 1450 RPM

Capacity :4 kW

Elevator: 1.5 meters

Semi Automatic Punching Press Machine Alu Foil Bowls Cups Plates Macking

5. Mold: Mold prices depend on the size of your container.

The customer needs to send the aluminum foil container to us first, and then we will calculate the mold cost according to your size

Semi Automatic Punching Press Machine Alu Foil Bowls Cups Plates Macking

For more information, please contact me (^o^)/~

Semi Automatic Punching Press Machine Alu Foil Bowls Cups Plates Macking
