Metal Plate Hydraulic Guillotine Cutting Machine Shears 4x1600mm Long Life

Product Categories
Anhui Aoxuan Heavy Industry Machine Co., Ltd.
Contact Now

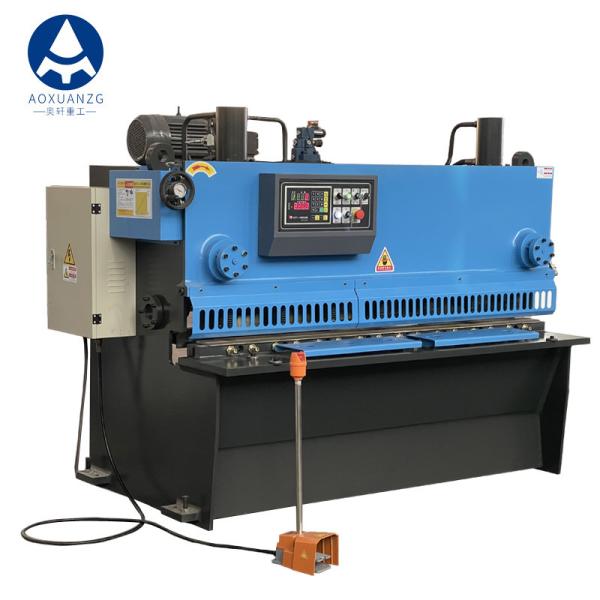

Metal Plate Hydraulic Guillotine Cutting Machine Shears 4x1600mm Long Life

  • 1
  • 2

Brand Name : Aoxuanzg

Model Number : QC12Y

Certification : CE,ISO

Place of Origin : China

MOQ : 1 set

Price : $13000-$18000/unit

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 500 sets per year

Delivery Time : 20-30 working days

Packaging Details : Standard export packing

Warranty : 2 Years

Voltage : Customized

Color : Customized

Name : Hydraulic Guillotine Shear Machine

Cutting thickness : 4mm

Max. cutting width (mm) : 1600mm

Contact Now

Long Life Metal Plate Hydraulic Guillotine Cutting Machine Shears 4*1600mm To South Korea

Standard Equipment:
1. Rapid and precise blade clearance adjustment by single handle on the side frame
2. Multi Edge Blades for cutting Aluminium, Mild Steel and Stainless Steel
3. Cutting Line Illumination and wire for shadow line cutting
4. Counter of Strokes, Cutting Length Adjustment
5. Hydraulic and Electrical overload protection
6. Squaring Arm and Front Support Arms
7. Estun E21S NC control
8. Germany Bosch-Rexroth Hydraulic
9. Schneider Electrics
10. Hydraulic and Electrical overload protection
11. Delta inverter with ball screw and polished rod with 0,05 mm accuracy.
12. Side guard is standard meeting CE regulations.

Metal Plate Hydraulic Guillotine Cutting Machine Shears 4x1600mm Long Life


Metal Plate Hydraulic Guillotine Cutting Machine Shears 4x1600mm Long LifeMetal Plate Hydraulic Guillotine Cutting Machine Shears 4x1600mm Long LifeMetal Plate Hydraulic Guillotine Cutting Machine Shears 4x1600mm Long Life

Estun E21s

1. Backgauge and block control
2. Control for general AC motors, frequency inverter
3. Intelligent positioning
4. Stock counter
5. Holding/decompression time setting
6. Program memory of up to 40 programs
7. Up to 25 steps per program
8. One side positioning
9. Retract function
10. One key backup/restore of parameters
11. mm/inch
12. Chinese /English

Metal Plate Hydraulic Guillotine Cutting Machine Shears 4x1600mm Long Life

Technical Parameters:
Metal Plate Hydraulic Guillotine Cutting Machine Shears 4x1600mm Long Life​

Model

Thickness

(mm)

Cutting Length

(mm)

Cutting Angle

(°)

Material Strength

(KN/CM)

Stroke

(times/min)

Power

(kw)

Dimension

(mm)
4×2500 4 2500 1°30’ ≤450 10 5.5 3040*1610*1620
4×3200 4 3200 1°30’ ≤450 10 5.5 3840*1610*1620
4×4000 4 4000 1°30’ ≤450 8 5.5 4600*1700*1700
4×6000 4 6000 1°30’ ≤450 5 7.5 6460*2100*3200
6×2500 6 2500 1°30’ ≤450 10 7.5 3040*1610*1620
6×3200 6 3200 1°30’ ≤450 9 7.5 3840*1610*1620
6×4000 6 4000 1°30’ ≤450 8 7.5 4620*1750*1700
6×5000 6 5000 1°30’ ≤450 6 7.5 5400*1750*1700
6×6000 6 6000 1°30’ ≤450 5 11 6480*2100*2300
8×2500 8 2500 1°30’ ≤450 10 7.5 3040*1700*1700
8×3200 8 3200 1°30’ ≤450 8 7.5 3860*1700*1700
8×4000 8 4000 1°30’ ≤450 8 7.5 4640*1700*1700
8×5000 8 5000 1°30’ ≤450 8 7.5 5400*2400*2000
8×6000 8 6000 1°30’ ≤450 8 11 6480*2100*2350
10×2500 10 2500 1°30’ ≤450 9 11 3040*1700*1700
10×3200 10 3200 1°30’ ≤450 9 11 3860*1700*1700
10×4000 10 4000 1°30’ ≤450 8 11 4650*2100*2000
10×6000 10 6000 2° ≤450 5 15 6500*2100*2300
12×2500 12 2500 2° ≤450 9 18.5 3140*2150*2000
12×3200 12 3200 2° ≤450 9 18.5 3880*2150*2000
12×4000 12 4000 2° ≤450 8 18.5 4680*2150*2000
12×5000 12 5000 2° ≤450 6 18.5 5900*2150*2000
12×6000 12 6000 2° ≤450 5 18.5 6900*2600*2700
12×8000 12 8000 2° ≤450 5 18.5 9000*3500*3500
16×2500 16 2500 2°30’ ≤450 9 18.5 3140*2150*2000
16×3200 16 3200 2°30’ ≤450 8 18.5 3880*2150*2000
16×4000 16 4000 2°30’ ≤450 8 18.5 4650*2150*2200
16×5000 16 5000 2°30’ ≤450 6 18.5 5900*2600*2700
16×6000 16 6000 2°30’ ≤450 5 22 6900*2700*2700
16×8000 16 8000 2°30’ ≤450 5 22 9000*3500*3500
20×2500 20 2500 3° ≤450 8 22 3440*2300*2500
20×3200 20 3200 3° ≤450 8 22 4150*2350*2700
20×4000 20 4000 3° ≤450 5 22 4850*2350*2700
20×6000 20 6000 3° ≤450 4 22 4850*2350*2700
25×2500 25 2500 3° ≤450 8 37 3200*2700*2900
25×3200 25 3200 3° ≤450 5 37 4200*2700*2900
30×2500 30 2500 3° ≤450 4 37 3300*2900*2900
30×3200 30 3200 3°30’ ≤450 4 40 4200*2900*2900
40×2500 40 2500 4° ≤450 3 75 3200*3300*3000
40×3200 40 3200 4° ≤450 3 90 4300*3300*3200

Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.

In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.

After-sale.
* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.
